The induction generators of half bridge basic series are suitable for kitchen equipment with small internal space.

Product Features

  • Half-Bridge circuit, eliminating high reverse voltage and ensuring high reliability
  • Capable of consistently and stably outputting 300W-1000W of power for extended periods
  • Integrated with multiple safety protection measures
  • Waterproof, oil-proof and dust-proof PCB design
  • Supports various communication protocols including UART / RS485 / RS232 / MODBUS RTU

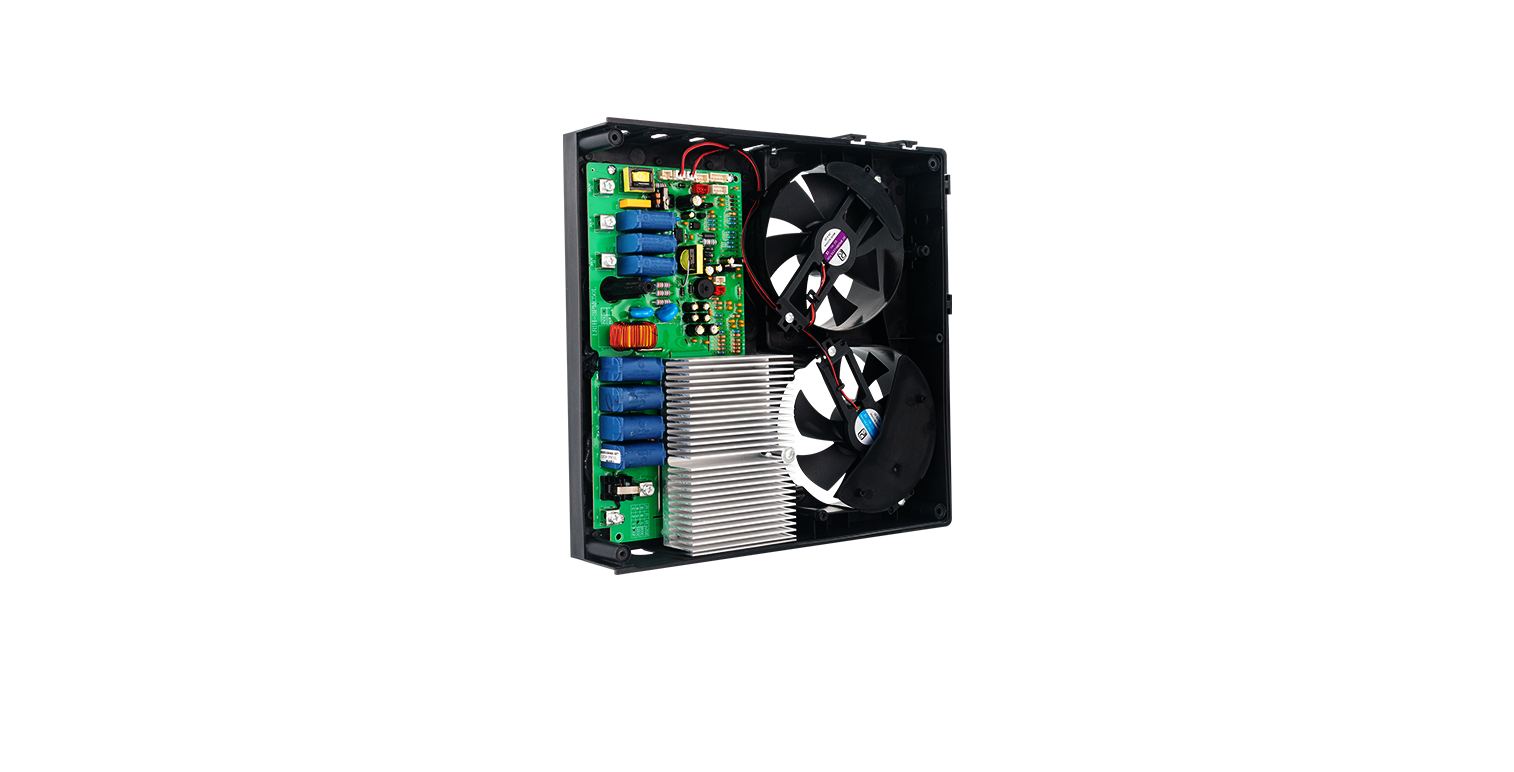

Front view of the half bridge basic series induction generator.

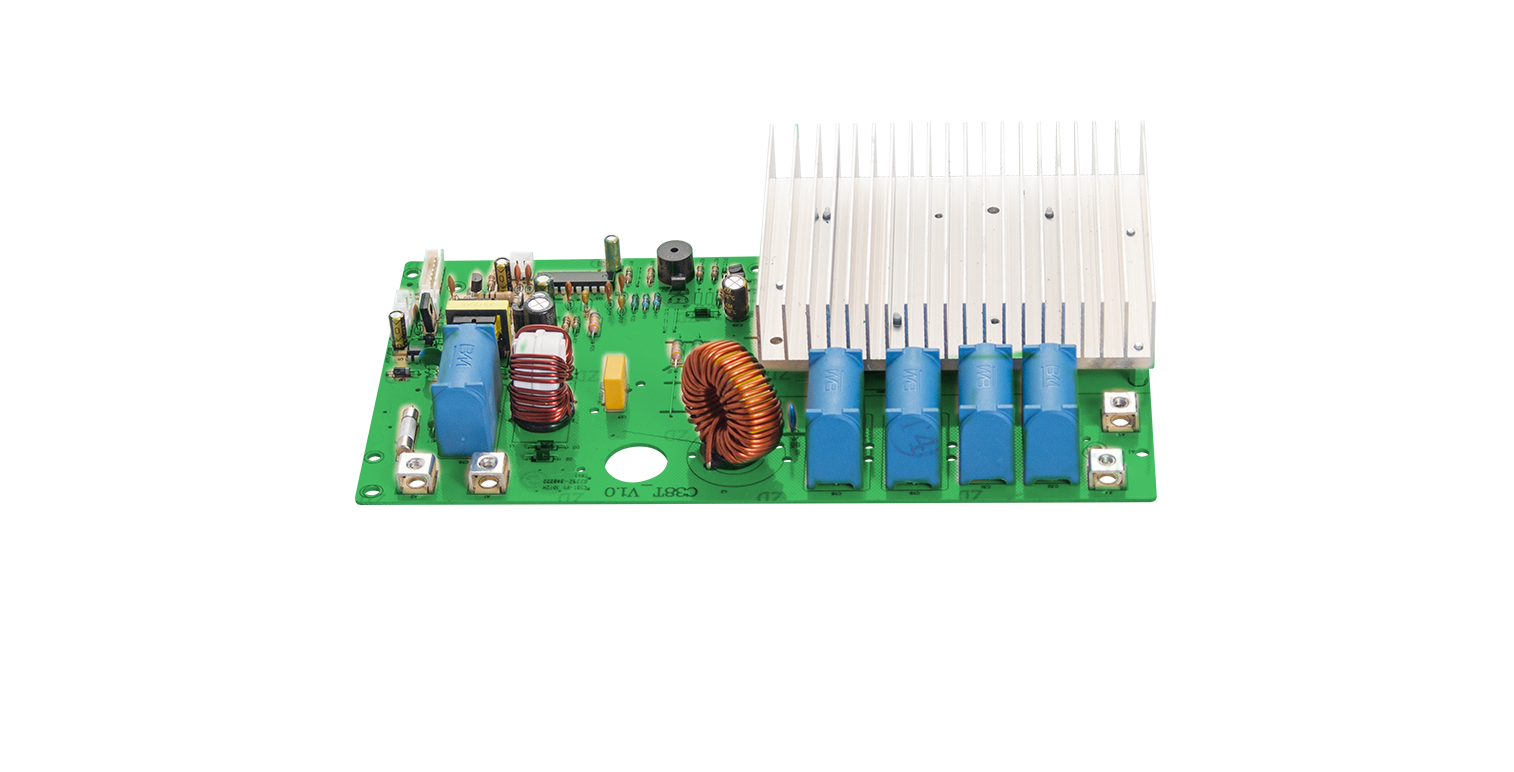

The mainboard which is the core element inside the induction generator of half bridge basic series.

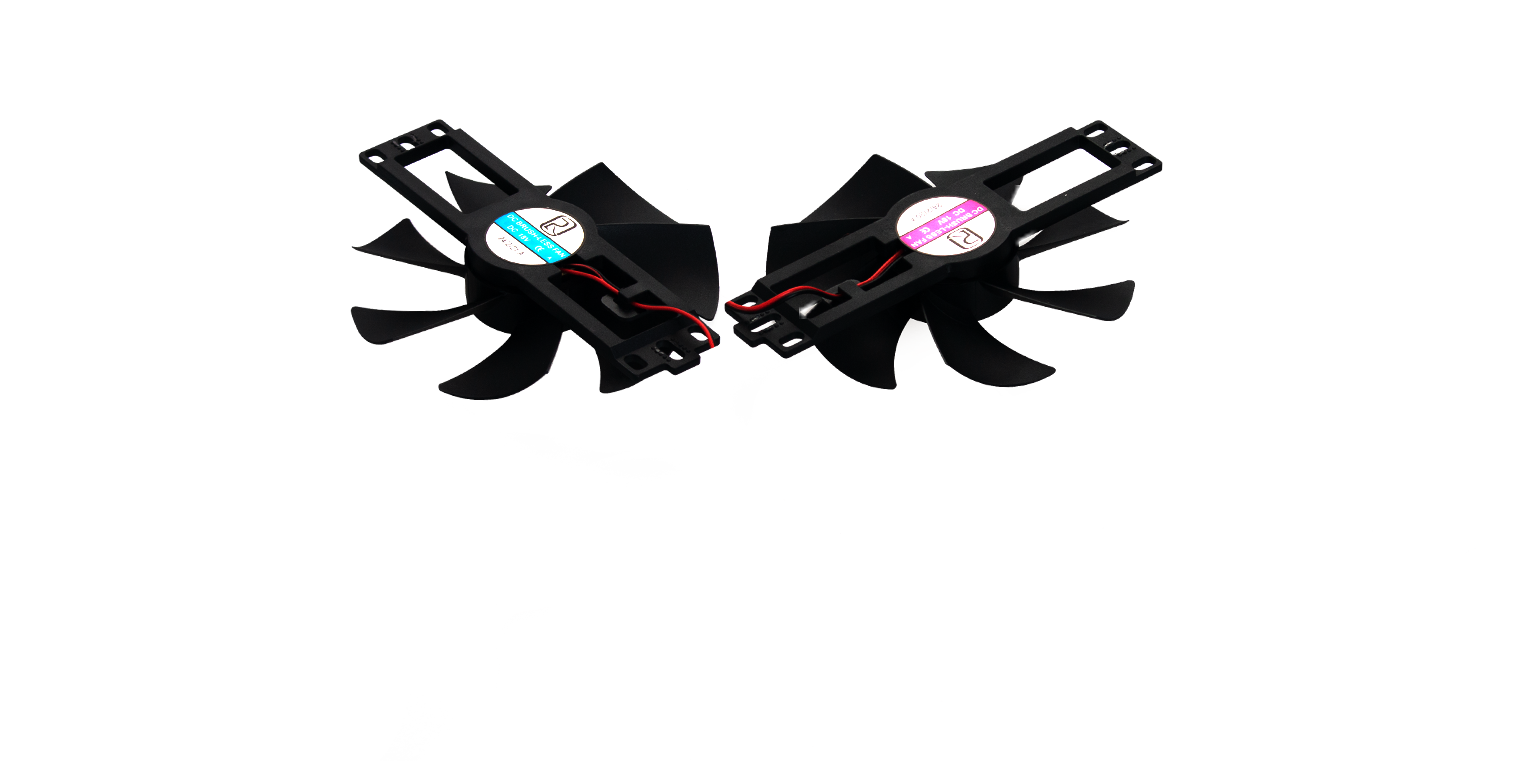

A cooling fan that dissipates heat from the induction generator of half bridge basic series.
Plastic housing for induction generators of half bridge basic series

Voltage Model Max. Power Min Power Standby Power Coil to Pot Coil Inductance
220V LRIH-MC28 2800W 300W ≤1.5W 7~9mm 85~95μH
LRIH-MC35 3500W 300W ≤1.5W 7~9mm 67~77μH
LRIH-MC50L 4700W 300W ≤2W 12~18mm 65~75μH
380V LRIH-3PMC50 5000W 1000W ≤2W 8~14mm 190~210μH
LRIH-3PMC60 6000W 1000W ≤2W 8~14mm 190~210μH
