The induction module of half bridge countertop series are suitable for kitchen equipment with small internal space.

Product Features

  • Half-Bridge circuit, eliminating high reverse voltage and ensuring high reliability
  • Capable of consistently and stably outputting 300W-1000W of power for extended periods
  • Integrated with multiple safety protection measures
  • Waterproof, oil-proof and dust-proof PCB design
  • Supports various communication protocols including UART / RS485 / RS232 / MODBUS RTU

Component

Front view of the half bridge countertop series induction coil.

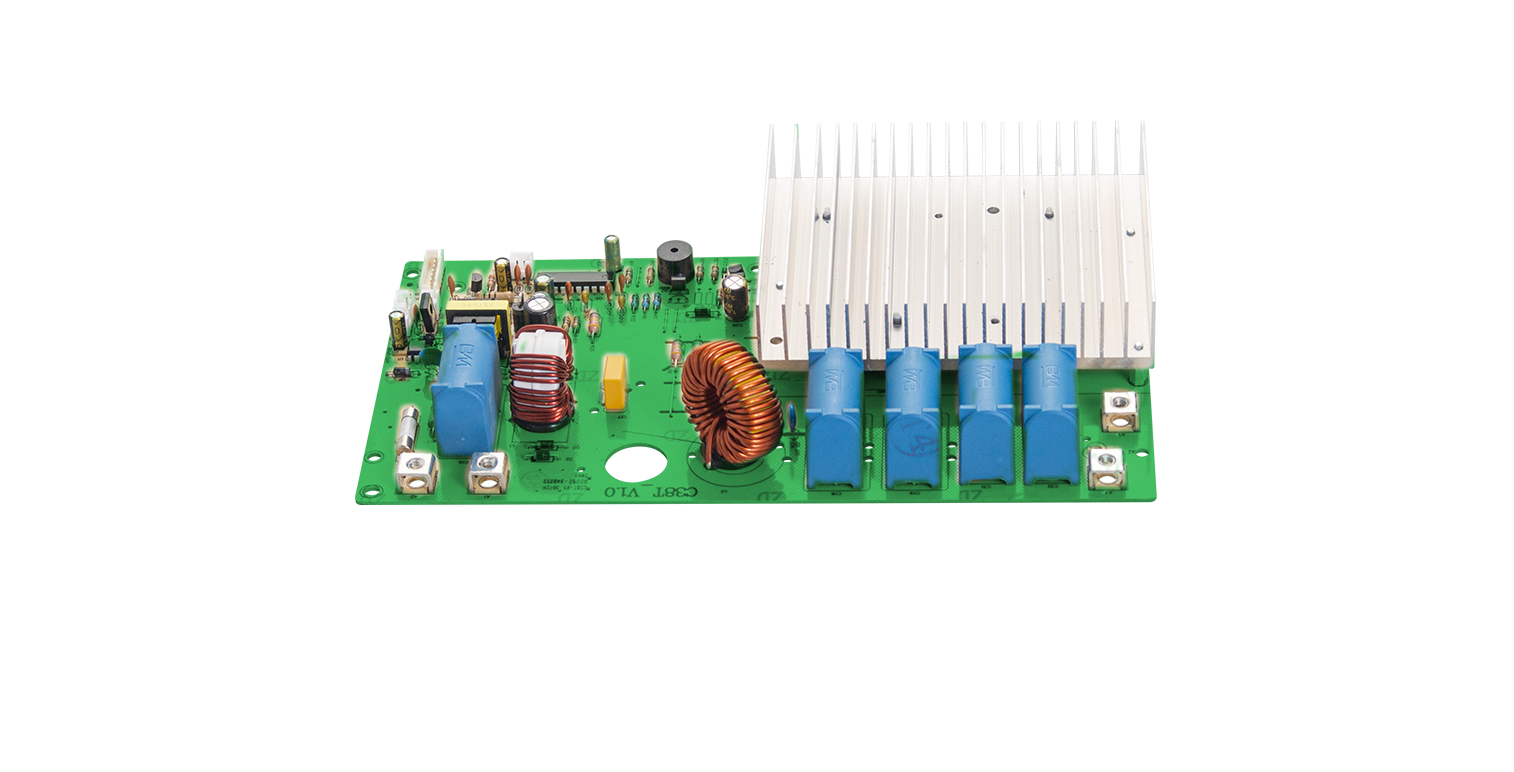

The mainboard which is the core element inside the induction module of half bridge countertop series.

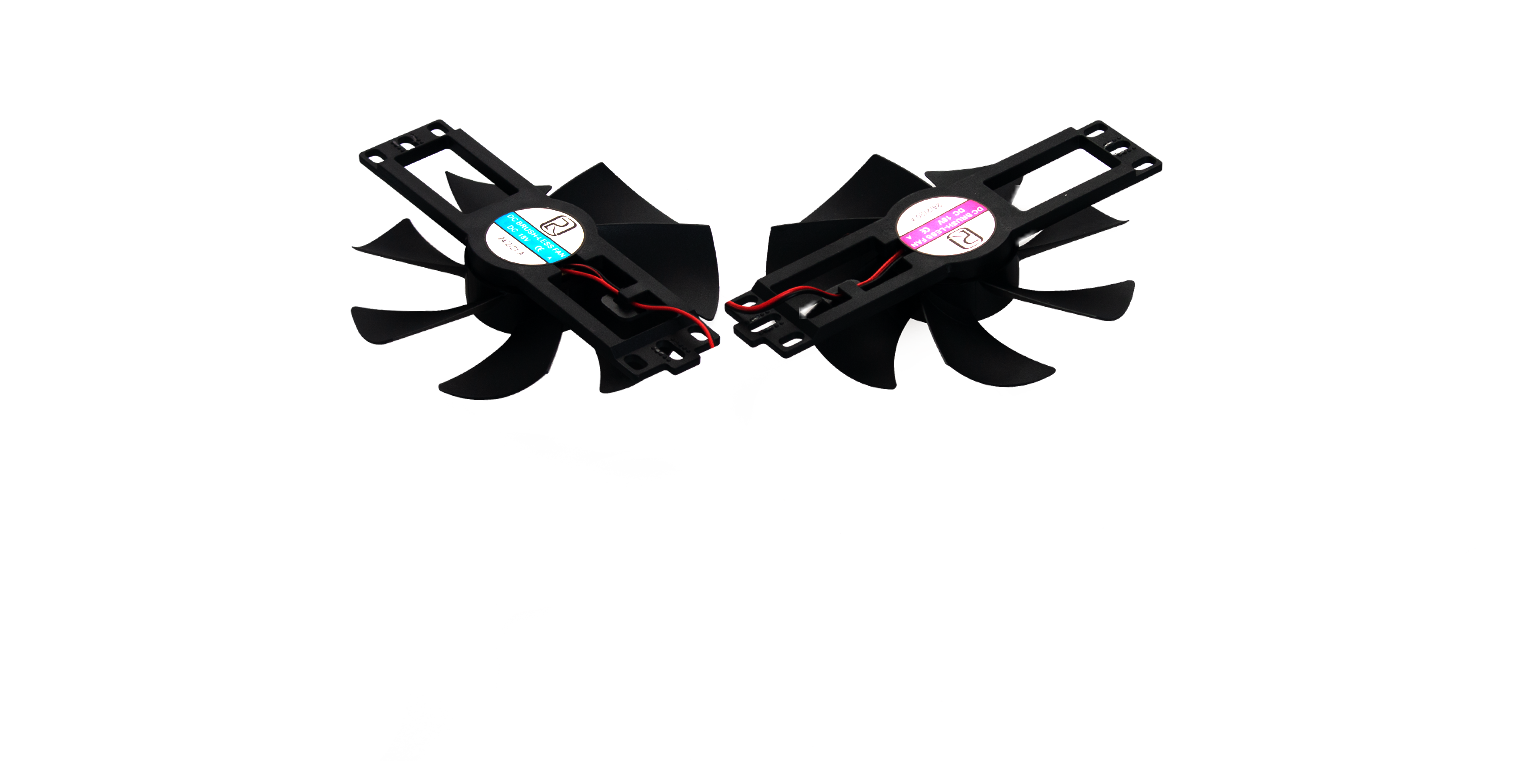

A cooling fan that dissipates heat from the induction module of half bridge countertop series.

Voltage Model Max. Power Min Power Standby Power Coil to Pot Coil Inductance
220V LRIH-MC28 2800W 300W ≤1.5W 7~9mm 85~95μH
LRIH-MC28 2800W 300W ≤1.5W 7~9mm 67~77μH
LRIH-MC35 3500W 300W ≤1.5W 7~9mm 67~77μH
LRIH-MC50L 4700W 300W ≤2W 12~18mm 65~75μH
380V LRIH-3PMC50 5000W 1000W ≤2W 8~14mm 190~210μH
